30KVA Diesel Generator ( Faw 3 Phase Supper Silent)
GENERATOR
CHASSIS
- The complete generator set is mounted as a whole on a heavy duty fabricated, steel base frame
- Steel chassis and anti-vibration pads
- Base frame design incorporates an integral fuel tank
- The generator can be lifted or carefully pushed/pulled by the base frame
- Dial type fuel gauge on the fuel tank
GENERATOR,30KVA Diesel Generator ( Faw 3 Phase Supper Silent)
CANOPY
- Ventilation parts are designed with modular principles
- Weather resistant and lined with sound reducing foam
- All metal canopy parts are painted by powder paint
- Panel window
- Lockable doors on each side
- Easy maintenance and operation
- Easy lifting and moving
- Thermally insulated engine exhaust system
- Exterior emergency stop push button
- Sound attenuated
*All ratings are quoted at maximum ratings at sea level and derating will be applicable for altitude and power factor.
GENERATOR,30KVA Diesel Generator ( Faw 3 Phase Supper Silent)

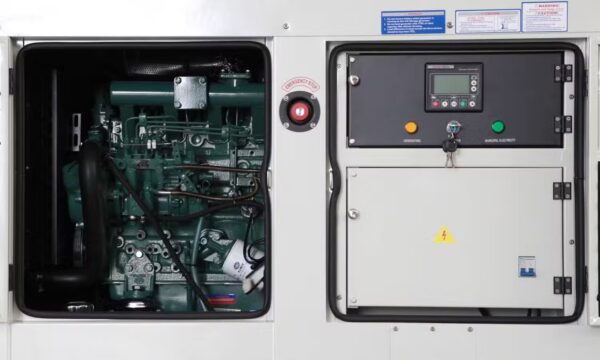

CONTROL SYSTEM
Control supervision and protection panel is mounted on the genset base frame. The control panel is equipped as follows:

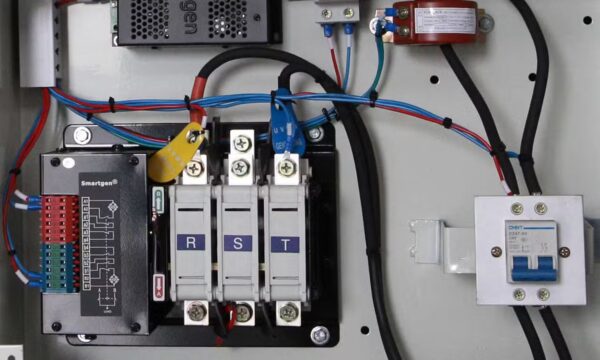

Auto mains failure control panel
- Controller with Smartgen automatic transfer switch
- 420 Smartgen electronic controller
- Emergency stop push button
- Static battery charger
- Three-pole electrically and mechanically interlocked ATS
Generating set control module 420 Smartgen features
- This module is used to monitor a mains supply and automatically start a standby generating set
- Shutdown alarms
- STOP/RESET-MANUAL-AUTO-TEST-START
Metering via LCD display
- Mains volts (L-L/L-N)
- Generator amps (L1, L2, L3)
- Generator frequency; generator (cos)
- Engine hours run; plant battery (volts)
- Engine oil pressure (psi and bar)
- Engine speed (rpm)
- Engine temperature (degrees C)
Automatic shutdown and fault conditions
- Under/over speed; fail to start
- High engine temperature; fail to stop
- Low oil pressure; charge fail
- Under/over generator volts
- Under/over generator frequency;
- Emergency stop/start failure
- Under/over mains voltage
- Charge failure
